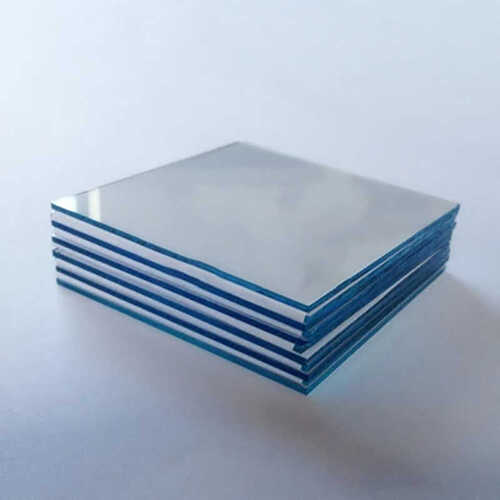

Fluorine Doped Tin Oxide coated (FTO) Conductive Glass

Price 3186 INR/ Piece

Get a Price/Quote

MOQ : 3 Pieces

Fluorine Doped Tin Oxide coated (FTO) Conductive Glass Specification

Usage & Applications
Solar cells, touch screens, electrochromic devices, flat panel displays, sensors, and OLEDs

Measuring Range
Sheet resistance: 715 /sq (standard)

Material
Fluorine Doped Tin Oxide (FTO) coated Glass

Weight
Approximately 200400 g per sheet, depending on size and thickness

Interface
Conductive glass surface, no electronic interface

Size
Standard sizes: 2525 mm, 5050 mm, 100100 mm; Custom sizes available

Driven Type
Passive conductor (non-driven)

Frequency
Not applicable for passive glass material

Power
Not applicable for passive material

Display
Transparent glass, non-emissive

Temperature
Operating temperature: up to 500C

Voltage
Typically supports low-voltage applications (100V), actual rating depends on use-case

Thickness
2.2 mm, 3.2 mm, or as specified

Color
Transparent with slight bluish tint

Edgework
Seamed (standard), polished or cut upon request

Transmittance
>80% at 550 nm wavelength

Hardness
Similar to float glass, Mohs hardness ~5.56

Surface Resistance
815 /sq (typical range, other values on request)

Chemical Durability
Highly resistant to humidity and mild chemicals

Coating Method
Atmospheric pressure chemical vapor deposition (APCVD)

Adhesion of Coating
Excellent, abrasion resistant

Substrate
Float glass

Available Forms
Sheet, cut-to-size, patterned

Fluorine Doped Tin Oxide coated (FTO) Conductive Glass Trade Information

Minimum Order Quantity
3 Pieces

Supply Ability
15 Pieces Per Day

Delivery Time
3 Days

Packaging Details
Seal pack

Main Export Market(s)
Asia

About Fluorine Doped Tin Oxide coated (FTO) Conductive Glass

Experience the excellence of our exclusive Fluorine Doped Tin Oxide (FTO) coated Conductive Glass-a meritorious choice for high-performance applications. With transmittance above 80% at 550 nm and typical sheet resistance between 8-15 /sq, this exquisite material is highly recommended for solar cells, sensors, and flat panel displays. Available in 2.2 mm and 3.2 mm thicknesses, our FTO glass boasts a glorious blend of superior hardness, humidity resistance, and exceptional coating adhesion. Jump on the opportunity to acquire custom-cut or standard sizes with unparalleled quality.

Meritorious Usage and Unmatched Competitive Advantages

Fluorine Doped Tin Oxide (FTO) coated Conductive Glass is highly valued for usage in solar cells, touch screens, electrochromic devices, and displays. Its primary competitive advantages include outstanding transparency, chemical durability, and uniform conductivity, making it suitable for research and industrial sectors. With patented APCVD coating and customizable surface resistance, FTO glass is a preferred choice in laboratories, R&D, and advanced sensor applications, offering reliability across diverse operating environments.

Efficient Delivery, Certifications, and Logistics

Exquisite attention is given to transportation and packaging to ensure safe and timely delivery of FTO Conductive Glass throughout India. Delivery times vary by required specifications and order size, typically ranging from a few days to two weeks. Our meritorious products are certified for quality, supporting global standards. Shipments are managed through major FOB ports, optimizing the asking price and expenditure for our clients while ensuring consistent availability and expedient distribution.

FAQ's of Fluorine Doped Tin Oxide coated (FTO) Conductive Glass:

Q: How is Fluorine Doped Tin Oxide (FTO) coated Conductive Glass produced?

A: FTO glass is produced using atmospheric pressure chemical vapor deposition (APCVD), which ensures a uniform and durable fluorine-doped tin oxide coating on float glass substrates, resulting in meritorious conductivity and optical clarity.

Q: What are the primary uses of FTO conductive glass?

A: This product is highly recommended for applications in solar cells, touch screens, electrochromic devices, flat panel displays, sensors, and OLEDs, thanks to its exquisite transparency and reliable conductivity.

Q: When is the typical delivery time for FTO glass orders?

A: Delivery time for FTO coated glass generally ranges from a few days to two weeks, depending on the order size, specifications, and selected transportation method.

Q: Where can FTO coated glass be utilized?

A: FTO glass can be effectively used in laboratories, manufacturing plants, research institutions, and industries focusing on photovoltaics, electronics, and smart devices.

Q: What are the benefits of choosing this FTO conductive glass over others?

A: Our FTO glass offers glorious chemical durability, high transmittance, consistent surface resistance, and superior hardness, providing a competitive edge for demanding applications.

Q: How can I specify custom sizes or resistance values for my application?

A: You can request custom sizes or surface resistance values by contacting our sales team, who will guide you through the process and ensure that the product matches your needs.
